The 'Homebrew' Project Page 2

2007-08 projects

N.B. Some photos are linked to a page describing the project

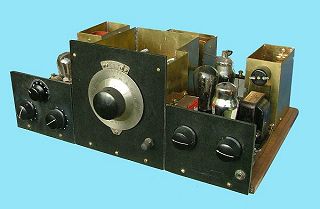

Ross Hull Superhet

This is one of those mega-projects for when you have too much spare time.

May 2007



Grebe CR-18
(cloned circuit)

This receiver was built from the plans of the Grebe CR-18 shortwave receiver.

January 2007

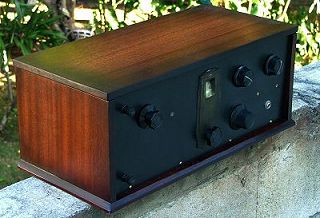

"Another 1929 Receiver"

This was from an article by Paul Hendricks in a 1929 QST. Its a 3-tuber using a 22 and a pair of 01As.

 February 2007

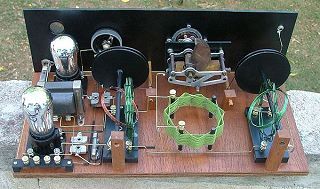

Its a Schnell !

This is my version of a Schnell receiver from about 1924. I revised it to tune from about 900 kc up to the 40 meter ham band.

 March 2007

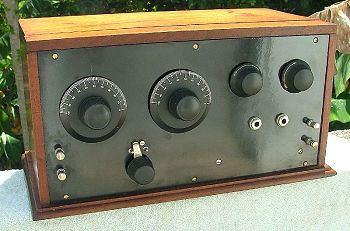

Stinson 99
I bought this from Dave Stinson a while back hence the name. It uses three UV199s in a medium-wave regenerative circuit.

 October 2007

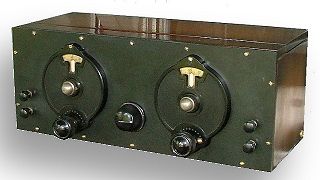

Silver-Marshall 730

My version of this popular commercial receiver kit. Very impressive performance.

 October 2007

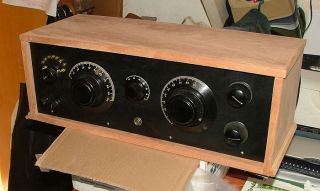

A Roberts Reflex

.  Its a 2-tube BCB reflex design.  Works surprisingly well.

 March 2008

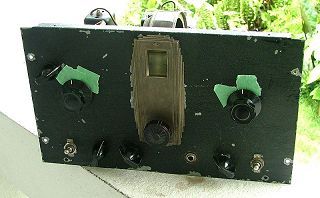

Somebody Else's HB

More to come on this one.  It was a poor design and I rebuilt it as a 6-tube superhet.

July 2007




Breadboard Regen SW

This receiver was very fun to build and is a pleasure to operate.

 May 2008




Breadboard Audio Amplifier

This was designed along the lines of the Western Electric 7A amp primarily for use with the Breadboard Regen.  Gives good speaker volume thru an old horn speaker.

Link under construction

June 2008
